Tungaloy Corp. is adding an economical and multifunctional chamfer cutter series to its TungQuad family, allowing multiple types of chamfering operations to be completed with one cutter.
Traditional edge conditioning requires hand grinders and other manual processes. Such methods are time consuming, requiring the part to be removed from the machine and refixtured for deburring and chamfering operations.
For an efficient alternative to manual methods, manufacturers are integrating cutting tools in the edge conditioning process. This not only keeps machine downtime low, but also improves the definition of edge condition, accuracy, and repeatability.
Tungaloy has long been present in the chamfering market, offering tools such as the ECC31 series; the ECP4400R series; and TungMeister VCP, VCA, and VCW series.

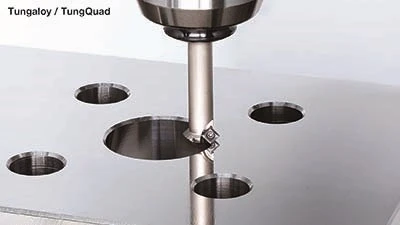

The new TungQuad chamfer cutter adds versatility, complementing Tungaloy’s chamfer tool range. The cutter uses compact inserts in positive, single-sided, square shape with a cutting edge length of 5.09mm (0.200”). This enables the same cutter to front-chamfer holes as small as 6mm (0.240”) in diameter and back-chamfer holes with 13mm (0.510”) in diameter, as well as chamfer along the edges.
The new cutter utilizes the existing SDMT05 and SDHT05 TungQuad inserts, in grades AH725, AH140, and TH10 for a wide variety of workpiece materials. Three types of standard cutter bodies are stocked in 12mm, 14mm, and 22mm shank diameters. Special cutters are available upon request.
Expansion currently available in metric shanks only.
Features:
- Single-sided inserts with four cutting edges for improved tool economy (existing TungQuad inserts)
- Universal chamfer cutter for multiple types of chamfering operations
- Allows front-chamfering of holes as small as 6mm (0.240”) in diameter
- Total items added: 3 types of cutter bodies, 3 types of inserts
