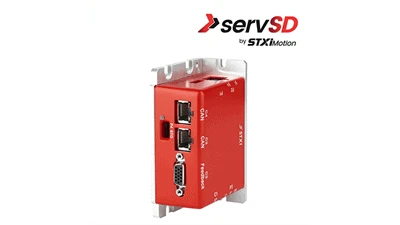

STXI Motion, a global motion control and servo solutions company, introduces the servSD ready-to-connect low-voltage servo drive, aimed at applications such as automated guided vehicles/autonomous mobile robots, electronics assembly, and medical equipment.
The servo drive offers high power density in a small footprint (106mm wide, 73.6mm deep, 40mm high) with near-motor mounting for applications with tight space constraints. With Safe Torque Off (STO) functional safety, the servSD meets the full range of safe operation requirements and can be connected to a master motion PLC or a modular safety controller.
The ready-to-connect drive doesn’t require pin soldering or cable adaptors, supports common motor feedback types including SSI, incremental, and BiSS, and uses real-time data exchange for higher levels of axis synchronization and safer modes of operation. A simple commissioning software with comprehensive parameterization options offers step-by-step guidance for motor setup, application configuration, and tuning.
The SD01-030 model offers a 24VDC input bus, 24VDC input logic, continuous current of 3 Arms, and peak current of 100Arms, while the SD01-025 model features a 48VDC input bus, 24VDC input logic, continuous current of 2 Arms, and peak current of 80Arms. The new servo drive is the latest in the company’s existing servo drive portfolio, which includes medium and high voltage drives for a wide range of applications.
