KYOCERA SGS Precision Tools announces a large expansion of the popular H-Carb seven-flute high efficiency end mill series with over 400 new coolant-through options.

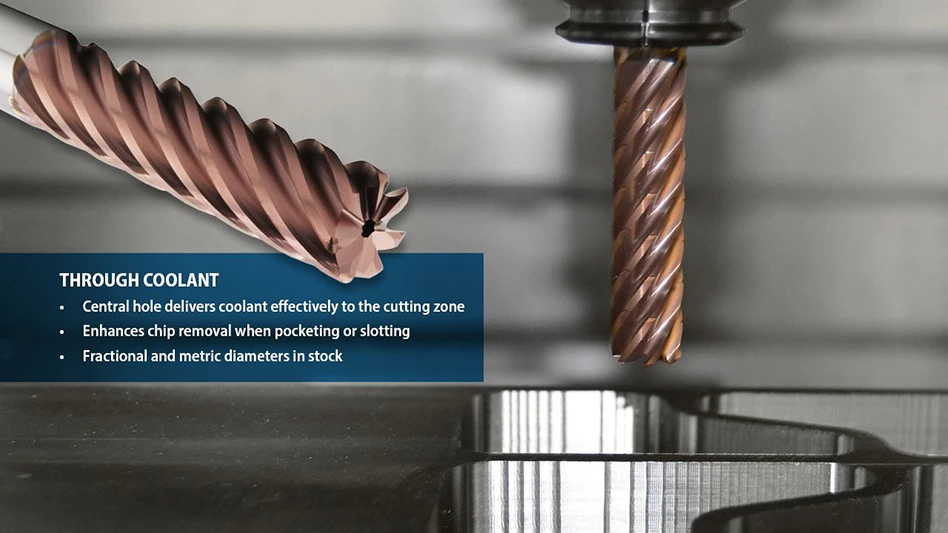

Available in various lengths of cut, the new H-Carb Series 77 coolant-through end mills specialize in deep axial trochoidal and high-speed machining applications. The new coolant-through varieties offer better wear, surface finish, and chip evacuation when pocketing or slotting. The H-Carb's specially designed core and flute design improve rigidity and chip flow while reducing deflection. The seven-flute design allows for superior finishes at higher speed and feed rates versus 5 and 6 flute tools.
The expanded H-Carb portfolio features specialized Ti-NAMITE-A or Ti-NAMITE-M coating technology for increased wear and abrasion resistance extending tool life dramatically to tackle a wide range of materials and applications. The Chip Breaker profile is standard option with a wide range of square end and corner radii options offered to meet a variety of machining specifications.
Benefits:
• Heavy duty core and specialized flute design for improved rigidity, chip flow and reduced deflection
• Chip Breaker profile standard in portfolio and aids in chip flow, especially in deep pocketing operations
• Deep pocketing and slotting capability using various lengths of cut offered applying a trochoidal tool path
• Coolant-through options available for better wear, surface finish, and chip evacuation when pocketing or slotting
• CAM programming methods using high efficiency machining by applying trochoidal tool paths and incorporating constant cutter engagement
• Available in 3 lengths of cut (2.5xD, 3xD, 4xD)
• Available in Ti-NAMITE-A and Ti-NAMITE-M coatings for a wide range of materials and applications
Features:
• Cutting Diameter: 1/4" - 1" / 6,0-25,0
• Length of Cut: 5/8" - 4" / 15,0-100,0
• Overall Length: 2 1/2"-7" / 63,0-170,0
• Shank Diameter: 1/4"-1" / 6,0-25,0
• Corner Radius: 0.015”-0.120” / 0,3-4,0
• Coating(s): Ti-NAMITE-M, Ti-NAMITE-A
• Special Options: Chip Breakers, Coolant-Through
Material Applications:
• Steel ≤ 45 HRc
• Stainless Steel ≤ 45HRc
• Cast Iron ≤ 45HRc
• High-Temp Alloys
• Titanium Alloys ≤ 45 HRc
