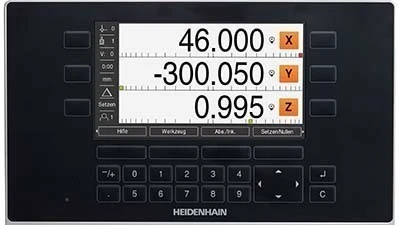

Schaumburg, Illinois – HEIDENHAIN’s ND 5023 digital readout (DRO) for use with manually operated machine tools replaces HEIDENHAIN’s entry-level ND 522/523 models and consolidates it to one three-axis product. The new DRO comes equipped with a new TFT color display that significantly improves the readability of the information displayed over older models, plus features other design changes and enhanced functions.
To make installing the readout easier for users or an inexperienced machinist, a new installation guide has been implemented to assist in performing the basic configuration. When switching on the unit for the first time, the user can select this support feature and will then be guided through the required settings step-by-step.
A straightforward user management has been introduced in order to make it easier for multiple users to operate the product. Up to nine operators can save their personal settings with a user number and call them again.
Many new features are being introduced on the ND 5023 including the new dynamic zoom feature which offers a noticeable improvement in position value readability. Once activated, the display value for the axis currently being moved is magnified. For small numbers (i.e., numbers close to zero), the character height can be increased from 17mm (standard height) to 25mm. The operator immediately sees which axis is currently moving and can also easily read the numerical value from a greater distance. When the axis stops moving, the display returns to its standard size. The display is also easily configured for right-handed or left-handed operation.
The new ND 5023 DRO also has a powder-coated, die-cast aluminum housing and, just like its predecessor, uses a membrane keyboard. As before, encoders with a TTL interface (differential and single-ended) can be connected via a 9-pin D-sub connector.
The data interface on the ND 5023 was changed to USB Type-C which has the advantage of allowing the digital readout to assume the tasks of both master and slave.
In addition, a universal mounting option has been implemented on this new DRO. It features a VESA-MIS 100 interface on the rear that allows the use of standardized holders for mounting. HEIDENHAIN solutions are available.
