CREDIT: VACUUM INTERRUPTERS

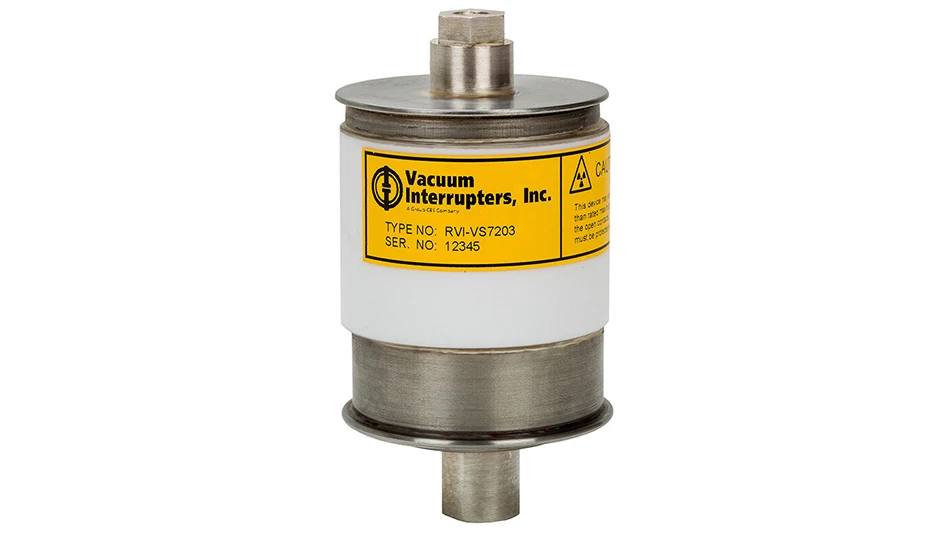

Vacuum Interrupters, a manufacturer of replacement vacuum interrupters, pole assemblies, parts, and components for medium-voltage vacuum circuit breakers and contactors, introduces the RVI-VS7203 replacement vacuum interrupter.
This direct fit-and-function replacement unit for the Siemens VS7203 vacuum interrupter meets original equipment ratings and is intended for use in Siemens 3TL8, 97H35, and 97H37 vacuum contactors. The RVI-VS7203 is built to provide excellent high-voltage insulation, high cumulative and breaking capacity, exclusive internal torsion control, and an exceptional vacuum seal thanks to a fine alumina ceramic.
The replacement vacuum interrupter offers 400A RMS-rated current, 7.2kV RMS maximum voltage, 60kV peak impulse withstand, and 5.0kA RMS-rated short-circuit breaking current.
No modification is required for proper installation and operation in existing Siemens 3TL8, 97H35, or 97H37 vacuum contactors. Vacuum Interrupters can also provide assembly components and mounting hardware to aid in installation and shorten downtime.
